Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
Product Name: | Video SFP Transceiver | Voltage Supply: | 3.3V |
---|---|---|---|
Datarate: | 50-3000 (Mb/s) | Application: | 3G Video System |
Connector: | LC | Brand: | AscentOptics/Neuter |
Vurgulamak: | digital video transmitter,3g video transmitter |

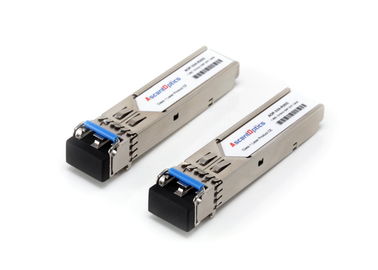

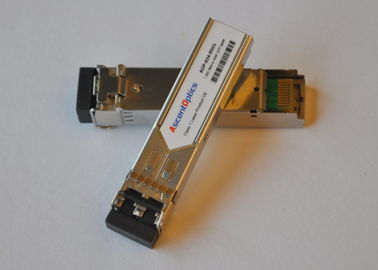

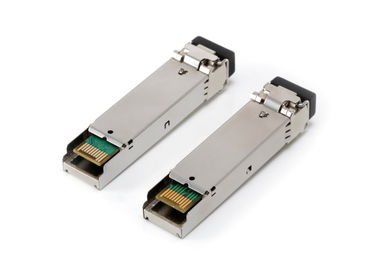

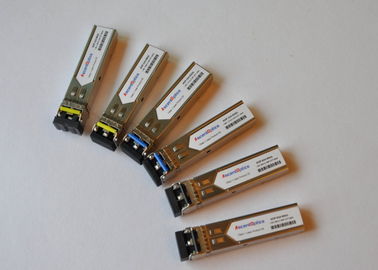

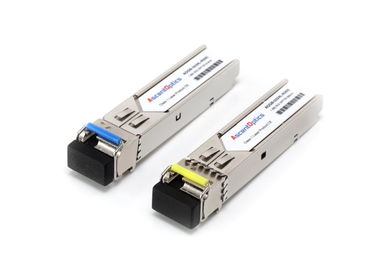

3G Pin Single Channel SMPTE Video SFP Transceiver LC GBIC 1260 - 1620nm
Specification:
P/N |
AVPR3G1310-SDI10 |
Datarate |
50~3000 (Mb/s) |
Number of optical input |
1 |
Number of optical output |
N/A |
Typical powervalue (dbm) |
N/A |
Sensitivity(dbm) |
-18 |
Estimated reach @3Gb/s (km) |
10Km@1.5Gb/s |
Connector |
LC |
Application |
3G Video System |
Operating Temperature |
0℃~ +70℃ |
Voltage Supply |
3.3V |
Certification |
CE/FCC/RoHS/TUV/UL |
Brand |
AscentOptics/Neuter, OEM |
Standards |
SMPTE 424M 3 Gbps SDI SMPTE 292M HD-SDI/ SMPTE 348M HD-SDTI SMPTE 259M SD-SDI/ SMPTE 306M SD-SDTI |
Description:
1. SMPTE 424M/297M compliant
2. Robust Error free transmission of signals from 50Mbps to 3.0Gbps
3. Supports video pathological patterns for 3G/HD-SDI/SD-SDI
4. PIN defination is compatible with MSA
5. SFP Package.Hot-pluggable
6. Metal enclosure for lower EMI
7. +3.3V single power supply.
8. Digital diagnostics and control via I²C interface, including:
1)Monitoring laser bias current, average output power, supply voltage and temperature
2)Alarm reporting when transmitter is at fault
3)Module ID polling
9. Compliant ROHS and lead free
Applications
Competitive advantage:
1. Excellent quality and 3 years warranty
2. Competitive pricing
3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
4. OEM/ODM Customized label
5. Keep stock,Fast delivery
